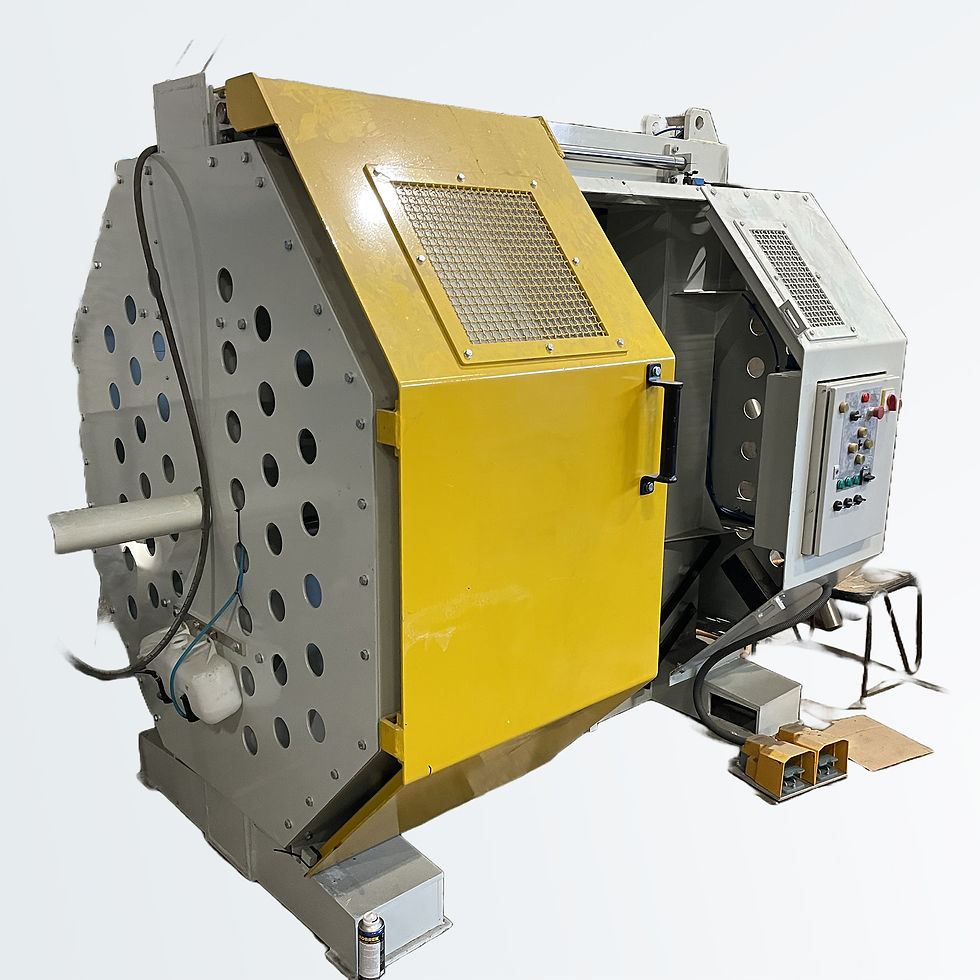

Truck Tire testing machine for checking used truck tires before they are reused or retreaded.

Depending on an option, the machine comes with two or three pairs of excellent quality discs of aluminium provided with an easy and safe fitting system.

Main features
solid and durable structure
ergonomic design facilitating operation and handling
pneumatically adjustable disc locks
adjustable inflation pressure (3 levels) up to 10 bars (145 psi)

Set Contents
TRUCK AIR TEST Machine
3 pairs of pressure plates: Pair 1: 17,5 inches, Pair 2: 19,5 inches, Pair 3: 22,5 inches
Foot switch

Basic technical specification
Pneumatic system
Required feed pressure
6-10 bars (87-145 psi)
Maximum inflation pressure
10 bar (145 psi)
Electric system
Power supply
380V
Engine power
1.5 kW

Operating dimensions
Height
200 cm
Width
120 cm
Length
240 cm
Weight
2500 kg
